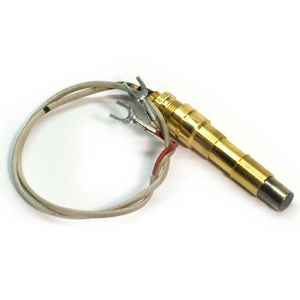

Robertshaw Thermopiles
Robertshaw® thermopiles
are the industry leader for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited
The 1950 and 1951 Series Thermopiles (pilot generators) are designed for use on self-powered gas control systems. They can be used to replace similar competitive devices.
Features and Benefits
- Easy burner installation with attached threaded nut
- Stainless steel outer jacket for long life and resistance to heat blistering
- Combination of copper and nickel alloys for good electrical conductivity
- Mica washer to insulate from shorting conditions
- Various lengths available for multiple applications
SKU:
049610
Description:

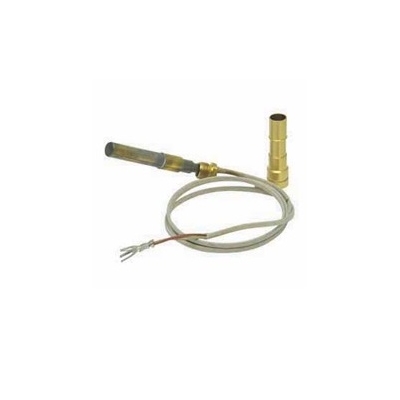

Robertshaw Thermopiles1950-001
It has two types of connections: coaxial and two-wire spade connectors.
Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output.
Manufacturer Part:
049610
Size/Color:
36"/ 2 lead
Price:
Price: $46.99
Quantity:
SKU:
049611
Description:

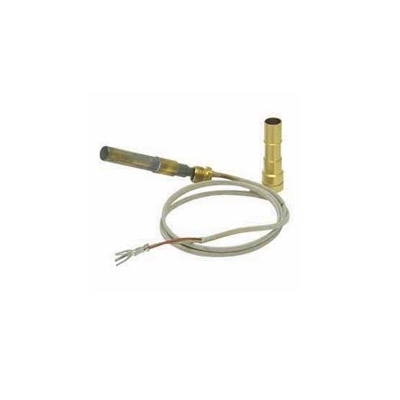

Robertshaw® thermopiles 1950-018
- Series Application : 1950 and 1951 Thermopiles
- Lead Length: 18"
- Connection : Two Load
Manufacturer Part:
049611
Size/Color:
18" / 1950-018
Price:
Price: $60.65
Quantity:
SKU:
049612
Description:

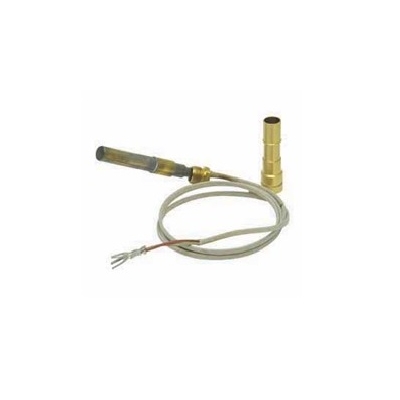

Robertshaw® thermopiles 1950-518
- Series Application : 1950 and 1951 Thermopiles
- Lead Length: 18"
- Connection : Two Load
- Stainless steel outer jacket for long life and resistance to heat blistering
- Combination of copper and nickel alloys for good electrical conductivity
Manufacturer Part:
049612
Size/Color:
18" / 1950-518
Price:
Price: $50.15
Quantity:
SKU:
049613
Description:

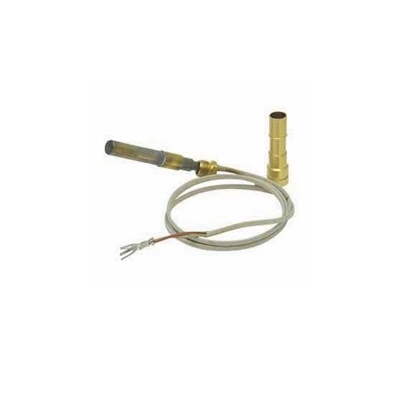

Robertshaw Thermopiles 1950-548
It has two types of connections: coaxial and two-wire spade connectors.
Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output.
Manufacturer Part:
049613
Size/Color:
48"/ 2 lead
Price:
Price: $50.49
Quantity:
